NEOTRAC
NEOTRAC
NEOTRAC

Long Tread Life

Durable tread compound with reinforced construction stands up to heavy loads and helps extend tread life.

All Weather Performance

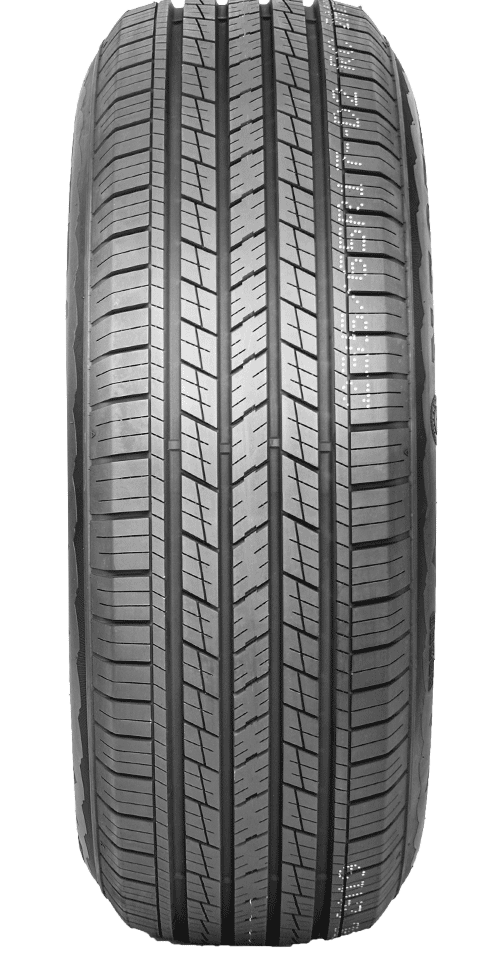

Four deep grooves and full-depth sipes provide enhanced traction and wet performance in severe weather conditions.

Quiet & Comfort Ride

Optimized tread design off ers a quiet and comfortable ride.

Highway Terrain
ROLLING RESISTANCE
WET PERFORMANCE
QUIETNESS
COMFORT
TREAD LIFE
UTQG:600AA
SIZE

PLY RATING/ LOAD

 RANGE

LOAD INDEX/ SPEED

SYMBOL

STANDARD

RIM

OVERALL DIAMETER

[MM / IN ]

SECTION WIDTH

[MM / IN ]

trEAD DEPTH

[MM/32NDS]

PRODUCT CODE
235/75R15/109XL T6.5J733 / 28.9235 / 9.38.5 / 10.76959613723261
215/70R16/100 H6.5J708 / 27.9221 / 8.78.5 / 10.76959613723124
225/70R16/103 T6.5J722 / 28.4228 / 9.08.5 / 10.76959613723179
235/70R16/106 T7J736 / 29.0240 / 9.48.5 / 10.76959613723148
245/70R16/107 T7J750 / 29.5248 / 9.88.5 / 10.76959613723285
255/70R16/111 T7.5J764 / 30.1260 / 10.28.5 / 10.76959613723308
265/70R16/112 T8J778 / 30.6272 / 10.78.5 / 10.76959613723100
LT225/75R1610 / E115/112 S6J750 / 29.5223 / 8.810.0 / 12.66959613723087
LT245/75R1610 / E120/116 S7J780 / 30.7248 / 9.810.0 / 12.66959613723070
265/75R16/116 T7.5J804 / 31.7267 / 10.58.5 / 10.76959613723209
225/65R17/102 H6.5J724 / 28.5228 / 9.08.5 / 10.76959613723162
235/65R17/108XL H7J738 / 29.1240 / 9.48.5 / 10.76959613723063
245/65R17/107 T7J750 / 29.5248 / 9.88.5 / 10.76959613723346
265/65R17/112 T8J776 / 30.6272 / 10.78.5 / 10.76959613723360
245/70R17/110 T7J776 / 30.6248 / 9.88.5 / 10.76959613723353
265/70R17/115 T8J804 / 31.7272 / 10.78.5 / 10.76959613723094
235/55R18/104XL H7.5J715 / 28.1245 / 9.68.5 / 10.76959613723186
235/60R18/103 T7J739 / 29.1240 / 9.48.5 / 10.76959613723384
245/60R18/105 T7J751 / 29.6248 / 9.88.5 / 10.76959613723391
265/60R18/110 H8J775 / 30.5272 / 10.78.5 / 10.76959613723421
265/65R18/114 T8J801 / 31.5272 / 10.78.5 / 10.76959613723155
275/65R18/116 T8J815 / 32.1279 / 11.08.5 / 10.76959613723445
265/70R18/116 T8J829 / 32.6272 / 10.78.5 / 10.76959613723438
275/55R20/117XL H8.5J810 / 31.9284 / 11.28.5 / 10.76959613723117
275/60R20/115 T8J838 / 33.0279 / 11.08.5 / 10.76959613723131


NEOTRAC
NEOTRAC

Long Tread Life

Durable tread compound with reinforced construction stands up to heavy loads and helps extend tread life.

All Weather Performance

Four deep grooves and full-depth sipes provide enhanced traction and wet performance in severe weather conditions.

Quiet & Comfort Ride

Optimized tread design off ers a quiet and comfortable ride.

UTQG:600AA
SIZE

PLY RATING/ LOAD

 RANGE

LOAD INDEX/ SPEED

SYMBOL

STANDARD

RIM

OVERALL DIAMETER

[MM / IN ]

SECTION WIDTH

[MM / IN ]

trEAD DEPTH

[MM/32NDS]

PRODUCT CODE
235/75R15/109XL T6.5J733 / 28.9235 / 9.38.5 / 10.76959613723261
215/70R16/100 H6.5J708 / 27.9221 / 8.78.5 / 10.76959613723124
225/70R16/103 T6.5J722 / 28.4228 / 9.08.5 / 10.76959613723179
235/70R16/106 T7J736 / 29.0240 / 9.48.5 / 10.76959613723148
245/70R16/107 T7J750 / 29.5248 / 9.88.5 / 10.76959613723285
255/70R16/111 T7.5J764 / 30.1260 / 10.28.5 / 10.76959613723308
265/70R16/112 T8J778 / 30.6272 / 10.78.5 / 10.76959613723100
LT225/75R1610 / E115/112 S6J750 / 29.5223 / 8.810.0 / 12.66959613723087
LT245/75R1610 / E120/116 S7J780 / 30.7248 / 9.810.0 / 12.66959613723070
265/75R16/116 T7.5J804 / 31.7267 / 10.58.5 / 10.76959613723209
225/65R17/102 H6.5J724 / 28.5228 / 9.08.5 / 10.76959613723162
235/65R17/108XL H7J738 / 29.1240 / 9.48.5 / 10.76959613723063
245/65R17/107 T7J750 / 29.5248 / 9.88.5 / 10.76959613723346
265/65R17/112 T8J776 / 30.6272 / 10.78.5 / 10.76959613723360
245/70R17/110 T7J776 / 30.6248 / 9.88.5 / 10.76959613723353
265/70R17/115 T8J804 / 31.7272 / 10.78.5 / 10.76959613723094
235/55R18/104XL H7.5J715 / 28.1245 / 9.68.5 / 10.76959613723186
235/60R18/103 T7J739 / 29.1240 / 9.48.5 / 10.76959613723384
245/60R18/105 T7J751 / 29.6248 / 9.88.5 / 10.76959613723391
265/60R18/110 H8J775 / 30.5272 / 10.78.5 / 10.76959613723421
265/65R18/114 T8J801 / 31.5272 / 10.78.5 / 10.76959613723155
275/65R18/116 T8J815 / 32.1279 / 11.08.5 / 10.76959613723445
265/70R18/116 T8J829 / 32.6272 / 10.78.5 / 10.76959613723438
275/55R20/117XL H8.5J810 / 31.9284 / 11.28.5 / 10.76959613723117
275/60R20/115 T8J838 / 33.0279 / 11.08.5 / 10.76959613723131
