Dependable cut/chip resistance compound promotes extended service life.

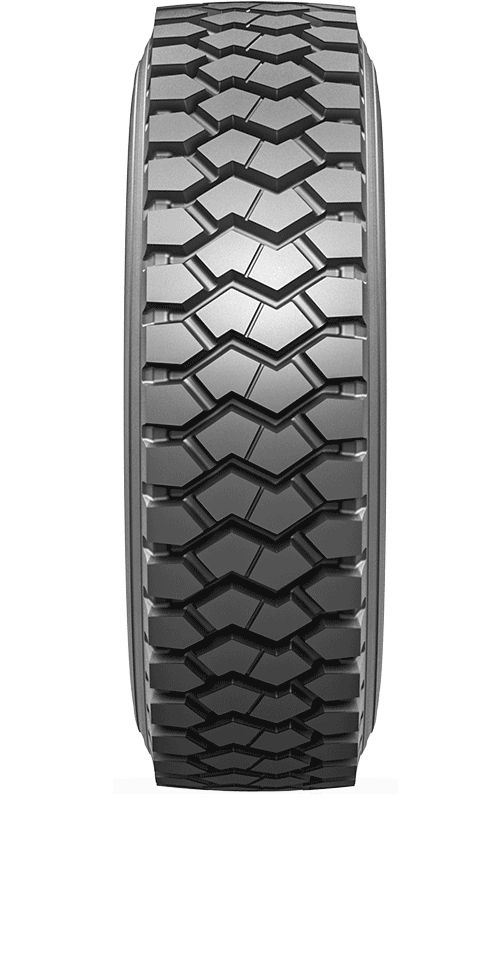

Rugged lug design provides deep non skid traction in severe off-highway service.
Premium enhanced casing construction with deep undertread provides excellent retreadability.
Drive
| SIZE | PR/LR | LOAD INDEX / SPEED SYMBOL | STANDARD RIM | OVERALL DIAMETE R[mm/in] | SECTION WIDTH [mm/in] | SINGLE LOAD [kg/lbs] | DUAL LOAD [kg/lbs] | PRESSURE [kpa/psi] | TREAD DEPT H[mm/32nds] | PRODUCT CODE |
| 11R22.5 | 16 / H | 146/143 L | 8.25 | 1065 / 41.9 | 279 / 11.0 | 3000 / 6610 | 2725 / 6005 | 830 / 120 | 23.8 / 30.0 | 6959613724558 |
| 11R22.5 | 14 / G | 144/142 L | 8.25 | 1065 / 41.9 | 279 / 11.0 | 2800 / 6175 | 2650 / 5840 | 720 / 105 | 23.8 / 30.0 | 6959613702785 |
| 315/80R22.5 | 20 / L | 161/154 K | 9.00 | 1076 / 42.4 | 312 / 12.3 | 4625 / 10200 | 3750 / 8270 | 900 / 130 | 23.8 / 30.0 | 6959613729188 |
| 11R24.5 | 16 / H | 149/146 L | 8.25 | 1104 / 43.5 | 279 / 11.0 | 3250 / 7160 | 3000 / 6610 | 830 / 120 | 23.8 / 30.0 | 6959613724565 |
| 11R24.5 | 14 / G | 146/143 L | 8.25 | 1116 / 43.9 | 279 / 11.0 | 3000 / 6610 | 2725 / 6010 | 720 / 105 | 23.8 / 30.0 | 6959613702792 |
Dependable cut/chip resistance compound promotes extended service life.
Rugged lug design provides deep non skid traction in severe off-highway service.
Premium enhanced casing construction with deep undertread provides excellent retreadability.
| SIZE | PR/LR | LOAD INDEX / SPEED SYMBOL | STANDARD RIM | OVERALL DIAMETE R[mm/in] | SECTION WIDTH [mm/in] | SINGLE LOAD [kg/lbs] | DUAL LOAD [kg/lbs] | PRESSURE [kpa/psi] | TREAD DEPT H[mm/32nds] | PRODUCT CODE |
| 11R22.5 | 16 / H | 146/143 L | 8.25 | 1065 / 41.9 | 279 / 11.0 | 3000 / 6610 | 2725 / 6005 | 830 / 120 | 23.8 / 30.0 | 6959613724558 |
| 11R22.5 | 14 / G | 144/142 L | 8.25 | 1065 / 41.9 | 279 / 11.0 | 2800 / 6175 | 2650 / 5840 | 720 / 105 | 23.8 / 30.0 | 6959613702785 |
| 315/80R22.5 | 20 / L | 161/154 K | 9.00 | 1076 / 42.4 | 312 / 12.3 | 4625 / 10200 | 3750 / 8270 | 900 / 130 | 23.8 / 30.0 | 6959613729188 |
| 11R24.5 | 16 / H | 149/146 L | 8.25 | 1104 / 43.5 | 279 / 11.0 | 3250 / 7160 | 3000 / 6610 | 830 / 120 | 23.8 / 30.0 | 6959613724565 |
| 11R24.5 | 14 / G | 146/143 L | 8.25 | 1116 / 43.9 | 279 / 11.0 | 3000 / 6610 | 2725 / 6010 | 720 / 105 | 23.8 / 30.0 | 6959613702792 |
